Rustica 3 sides maxi

Brushing machine for carbonized and burnt wood and timber beams

The world of wood is returning to its origins and from all over the world we are receiving more and more requests for specific machines dedicated to brushing and pre-finishing wooden beams charred or burned with the ancient Japanese art known as Yakisugi-Ita or Shou Sugi Ban.

The charred wood must be cleaned of the "crust" before sealing or coating with prefinisher primers and nanotech paints. So after the action of our brushing machine the dust become a black and heavy powder. For this reason our specific brushing machine dedicated to this purpose needs a powerful industrial dust collector system connected to it. Being the profiles in larch wood, or accoya or more often in New Zealand and Japan they use carbonized cedar timber, processed with controlled flame on 4 sides, our machine foresees brushes on 3 sides of the profile dragged by the traction belt, so that in two steps it is possible to completely clean the 4 sides of the wooden profile.

Some of our customers also use to carbonise wooden beams: that's why the MAXI version of our already best-selling “Rustica 3Sides” (https://www.woodfloormachinery.com/en/charred-timber-brushing-machine) is born to be able to brush and clean even thicker profiles after carbonization. Of course the same machine works perfectly on fences and cladding profiles or decking solid wood boards for exterior flooring and vertical wooden walls.

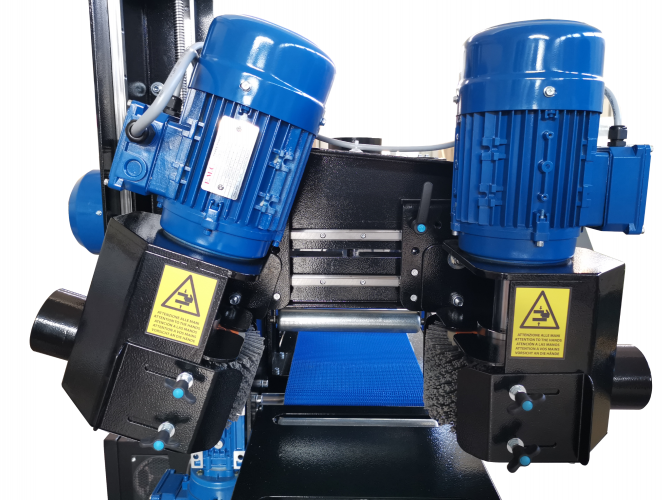

PAOLONI MAXI RUSTICA 3 SIDES WIRE BRUSHING MACHINE FOR SHOU SUGI BAN YAKISUGI TIMBER CHARRED WOOD

DIFFERENT BRUSHES COMBINATIONS TO MAKE DIFFERENT GRAINED AND DISTRESSED EFFECT ON WOOD

spazzola Rustica One

Hard stell wire brush

spazzola Rustica One

60 grit tynex brush

spazzola Rustica One

120 grit tynex brush

spazzola Rustica One

Flatter brush sand paper grit 320-240

spazzola Rustica One

Medium steel wire brush

spazzola di cotone

Cotton polishing brush

spazzola scotch brite rosso

Scotch brite Drum

MACHINERY EXPLANATION

HOW TO USE

HOW TO SET UP SHAFT TOOL CHANGING QUICKLY THE BRUSH AT WORK

WIRE BRUSHING ACCOYA CHARRED SHOU SUGI BAN WOOD

WIRE BRUSHING LARCH CHARRED SHOU SUGI BAN WOOD

Technicals data

Machine weight and dimensions:

  • Lenght: 158 cm
  • Width: 112 cm
  • Height: 160 cm
  • Total Weight: 460 kg

Workable wood elements (on 3 sides)

  • Tickness min. 5 mm - max. 300 mm
  • Width min. 20 - max. 250 mm (under requestup to 400 mm)
  • Lenght min. 300Mm – max No Limit
  • Sides size: up to 100mm (under requestup to 200 mm)

Orizontal and vertical engines

Three-phase power supply

  • Nominal voltage: 380 V / 50 Hz (optional custom made for worldwide standards)
  • Total power: 6,0 kW

Adjustable speed orizontal brush rotation (OPTIONAL)

  • Adjustable speed: min. 25 RPM - max. 960 RPM (adjustable brush direction)
  • Vertical brushes inclination: +/- 10°

Production speed:

  • 2-15 Mt/min

Electrical lifter with digital display
